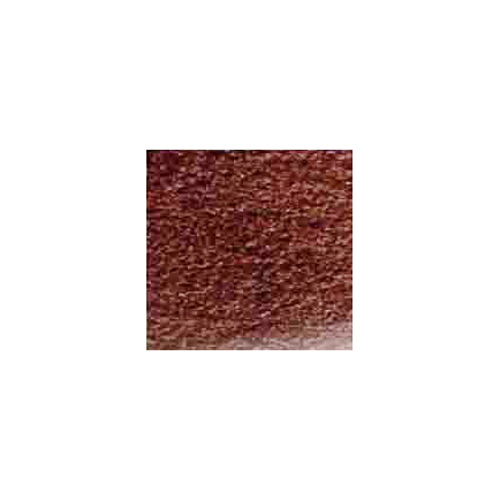

Garnet Sand

Garnet Sand
Garnet Sand
Send Inquiry
Product Code : 01
Product Description

Garnet Sand is mainly used in sandblasting applications. It is a natural mineral abrasive which is suitable for wet and dry blasting. Known for its high impact strength, the sand particles are very high and reusable for different blasting operation. It generates low levels of dust which make it reusable for different applications. The abrasive is environment friendly and confirm to the strength and safety parameters. Due to the features such as perfect pH value, purity, longer life, non toxicity and perfect composition, our Garnet Sand has become one of the main choices of the customers.

Features:

  • Suitable for wet and dry abrasive blasting
  • Best for fast cutting and Stripping
  • Chemical inert and anti corrosive
  • Due to lower dust emission, high operator visiblity.,

Technical Specification :

Typical Chemical Analysis

SiO2

37-38%

CaO

2-2.5%

A12O3

20-21%

MgO

3-4%

Fe2O3

30-32%

P2O5

nil

TiO2

1-1.5%

Total Chlorides

-< 10 ppm


Sieve Analysis Of 30-60 Garnet

ASTM

SIEVE OPENING MM

ACTUAL PERCENTAGE

CUMULATIVE PERCENTAGE

+20

-

1.25

1.25

+30

0.600

6.20

7.45

+40

0.425

31.20

38.65

+50

0.300

46.58

85.23

+60

0.250

7.02

92.25

+80

0.180

7.57

99.82

+80

0.180

0.18

100.00

Chemical Composition :

  • Almandine garnet Fe3A12 (SiO4),
  • Garnet a homogenous mineral
  • Contains no free chemicals, all
  • oxides and dioxides are combined chemically

Physical Characteristics :

Bulk Density

2400 kg / m3

Specific Gravity

4.16

Hardness (Mohs)

8.1

Melting Point

1300oC

Particle Shape

Angular

Reactivity

Inert

Other Characteristics :

Radioactivity

Not detectable above background

Moisture Absorption

Non Hygroscopic

Free Iron

-<0.01%

Copper

-<0.01%

Other heavy metals

-<0.01%

Packing Details :

  • Packed in one ton bags of superior quality.

Note :

  • There may be slight variations in the chemical analysis as Garnet is a natural products.
  • Grain sizes are closely monitored as they tend to show slight variations.
